CARBON fibre sandwich sheets with AIREX® T90.60 core

CARBON fibre sandwich sheets with AIREX® T90.60 core

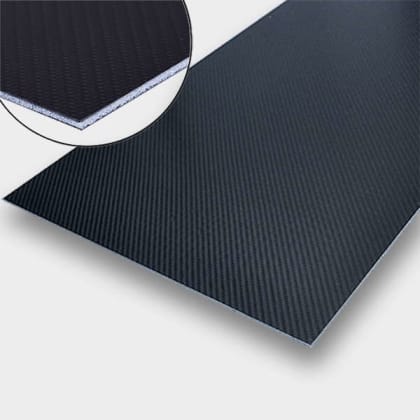

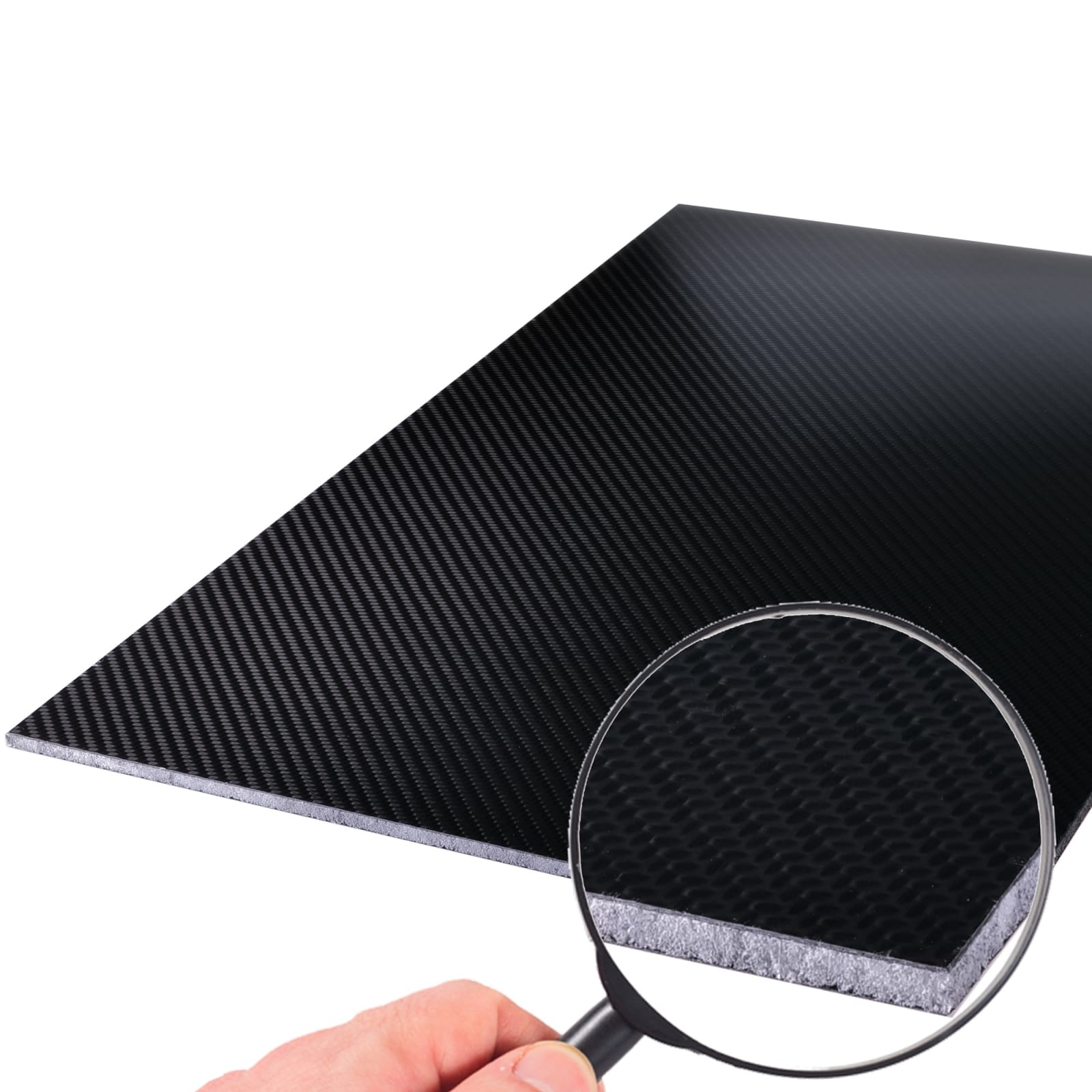

Lightweight carbon fibre sandwich sheets manufactured out of HT-carbon fibre prepregs in twill weave 2/2, with a transparent epoxy matrix and a sandwich core of Airex®T90.60 in press moulding.

R&G carbon fibre sandwich sheets could easily be milled, sawn or cut by waterjet.

Technical data:
Surface layers:
Carbon fabric prepreg 200 g/m², twill weave 2/2
Sandwich core: Airex® T90.60* (65 kg/m³)
Heat deflection temperature:
120 °C

CFRP sheets are generally not UV-resistant.

*AIREX T90 is a closed-cell, thermoplastic and recyclable, structural PET rigid foam. AIREX® T90 is a foam core material with excellent fire, smoke and toxicity (FST) properties.

Characteristics of AIREX® T90.60:

  • Very good fire resistance (FAR 25.853, NF F16-101, DIN 5510)
  • Very good fatigue resistance
  • Excellent long-term thermal stability up to 100 °C
  • Very high processing temperature up to 150 °C
  • High compressive strength and high compressive modulus
  • Very low dispersion of mechanical values
  • Good topcoat adhesion (connection of topcoat to the core)
  • Excellent chemical resistance
  • No water absorption
  • No re-expanding
R&G

Carbon fibre sandwich sheet with AIREX® core (350 x 150 x 10 mm)

Thickness of CFRP outer layer: 0.2 mm each, core material: Airex® T90.60, thickness tolerance of entire panel: approx. ± 0.5 mm, weight: approx. 228 g

Item no.  650-035-015-10 Only 1 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

83,97
(Base Price 83,97 € /  pc.)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 5:  10,00%
- +
R&G

Carbon fibre sandwich sheet with AIREX® T90.60 core (550 x 350 x 6 mm)

Thickness of CFRP outer layer: 0.5 mm each, core material: Airex® T90.60, thickness tolerance of entire panel: approx. ± 0.2 mm, weight: approx. 380 g

Item no.  650-055-035-06 Only 4 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

151,32
(Base Price 151,32 € /  pc.)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 3:  10,00%
  • From Qty 5:  15,00%
  • From Qty 10:  20,00%
- +
R&G

Carbon fibre sandwich sheet with AIREX® core (550 x 350 x 10 mm)

Thickness of CFRP outer layer: 0.2 mm each, core material: Airex® T90.60, thickness tolerance of entire panel: approx. ± 0.5 mm, weight: approx. 820 g

Item no.  650-055-035-10 Only 1 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

157,85
(Base Price 157,85 € /  pc.)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 5:  10,00%
- +
R&G

Carbon fibre sandwich sheet with AIREX® T90.60 core (700 x 550 x 6 mm)

Thickness of CFRP outer layer: 0.5 mm each, core material: Airex® T90.60, thickness tolerance of entire panel: approx. ± 0.2 mm, weight: approx. 880 g

Item no.  650-070-055-06 Only 2 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

293,24
(Base Price 293,24 € /  pc.)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 3:  10,00%
  • From Qty 5:  15,00%
  • From Qty 10:  20,00%
- +
R&G

Carbon fibre sandwich sheet with AIREX® core (700 x 550 x 10 mm)

Thickness of CFRP outer layer: 0.5 mm each, core material: Airex® T90.60, thickness tolerance of entire panel: approx. ± 0.2 mm, weight: approx. 1020 g

Item no.  650-070-055-10 Only 1 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

299,42
(Base Price 299,42 € /  pc.)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 5:  10,00%
- +
R&G

Carbon fibre sandwich sheet with AIREX® core (980 x 480 x 6 mm)

Thickness of CFRP outer layer: 0.2 mm each, core material: Airex® T90.60, thickness tolerance of entire panel: approx. ± 0.5 mm, weight: approx. 1020 g

Item no.  650-098-048-06 Only 1 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

391,58
(Base Price 391,58 € /  pc.)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 5:  10,00%
- +
R&G

Carbon fibre sandwich sheet with AIREX® core (1100 x 700 x 3 mm)

Thickness of CFRP outer layer: 0.2 mm each, core material: Airex® T90.60, thickness tolerance of entire panel: approx. ± 0.2 mm, weight: approx. 950 g

Item no.  650-110-070-03 Short delivery time

Add to Shopping List

428,84
(Base Price 428,84 € /  pc.)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 5:  10,00%
- +
R&G

Carbon fibre sandwich sheet with AIREX® T90.60 core (1100 x 700 x 6 mm)

Thickness of CFRP outer layer: 0.5 mm each, core material: Airex® T90.60, thickness tolerance of entire panel: approx. ± 0.2 mm, weight: approx. 1700 g

Item no.  650-110-070-06 Only 4 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

573,01
(Base Price 573,01 € /  pc.)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 3:  10,00%
  • From Qty 5:  15,00%
  • From Qty 10:  20,00%
- +
R&G

Carbon fibre sandwich sheet with AIREX® core (1100 x 700 x 20 mm)

Thickness of CFRP outer layer: 0.5 mm each, core material: Airex® T90.60, thickness tolerance of entire panel: approx. ± 0.2 mm, weight: approx. 2420 g

Item no.  650-110-070-20 Short delivery time

Add to Shopping List

660,45
(Base Price 660,45 € /  pc.)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 5:  10,00%
- +

all Prices  price incl. VAT, possibly plus shipping

Article information

type: ga
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
Instructions for use
type: si
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
MSDS
type: pi
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
Product information
type: td
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
type:
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]

Hazards identification - CARBON fibre sandwich sheets with AIREX® T90.60 core

Classification of the substance or mixture

The product is not classified according to the CLP regulation.
Labelling according to Regulation (EC) No 1272/2008: Void
Hazard pictograms: Void
Hazard statements: Void

Signal word: n/a
