current product filters:  Spread Tow  Reset all Filters

Comparison of characteristics of fibres used for TeXtreme® Carbon fabric:



  TeXtreme®
Carbon fabric HT

TeXtreme®
Carbon fabric IM

 TeXtreme®
Carbon fabric HM
Used fibre
 Tenax® UTS50 12k
800 tex		 Pyrofil® TR50S 15k
1000 tex		 Torayca® M30SC 18K
50C 761 tex		 Tenax® IMS65 24k
830 tex		 Pyrofil™ HR40 12k
600 tex
Tensile strength (MPa): 5100 4900 5490 6000 4410
Tensile modulus (GPa): 245 240 294 290 395
Elongation at break (%): 2.1 2.0 1.9 1.9 1.2
Density (g/cm³) 1.78 1.82  1.93 1.78  1.82

Items

190267
190263
190263-45-20-100

TX-100100-45

190276-45

TX-082100-IM

190267HM-100

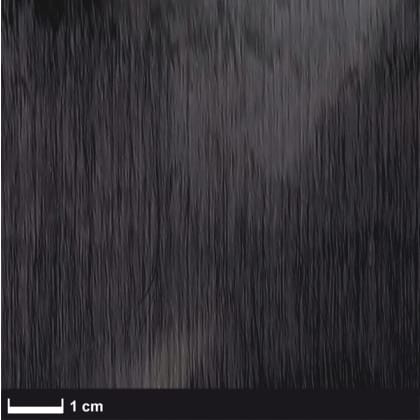

Carbon non-crimp fabric ST 50 g/m² (UD) 50 cm

Carbon non-crimp fabric ST 50 g/m² (UD) 50 cm
50 g/m² (1.5 oz/yd²)
from  26,63 €  / 2 m

Carbon non-crimp fabric ST 80 g/m² (UD) 50 cm

Carbon non-crimp fabric ST 80 g/m² (UD) 50 cm
80 g/m² (2.4 oz/yd²)
from  27,48 €  / 2 m

Carbon non-crimp fabric ST 100 g/m² (UD) 50 cm

Carbon non-crimp fabric ST 100 g/m² (UD) 50 cm
100 g/m² (2.9 oz/yd²), 50 cm
from  49,29 €  / 5 m

Carbon non-crimp fabric ST 150 g/m² (UD) 50 cm

Carbon non-crimp fabric ST 150 g/m² (UD) 50 cm
150 g/m² (4.4 oz/yd²), 50 cm
from  29,14 €  / 2 m

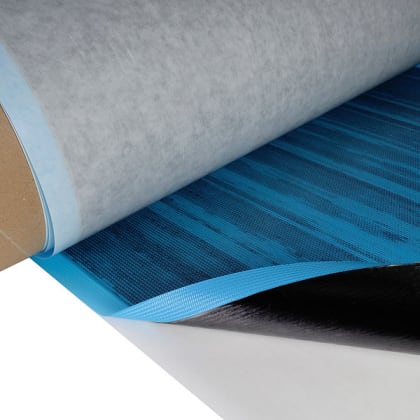

UNIPREG® Carbon non-crimp fabric prepreg 150 g/m²

UNIPREG® Carbon non-crimp fabric prepreg 150 g/m²
(4.42 oz/yd²), 50 cm
Prepreg weight: 234 g/m²
from  29,44 €  / 2 m

Carbon non-crimp fabric ST 200 g/m² (UD) 50 cm

Carbon non-crimp fabric ST 200 g/m² (UD) 50 cm
200 g/m² (6 oz/yd²), 50 cm
from  31,93 €  / 2 m

Carbon non-crimp fabric ST 300 g/m² (UD) 50 cm

Carbon non-crimp fabric ST 300 g/m² (UD) 50 cm
300 g/m² (8.8 oz/yd²), 50 cm
from  74,95 €  / 1 m

Carbon non-crimp fabric ST 400 g/m² (UD) 50 cm

Carbon non-crimp fabric ST 400 g/m² (UD) 50 cm
400 g/m² (11.8 oz/yd²), 50 cm
from  45,42 €  / 2 m

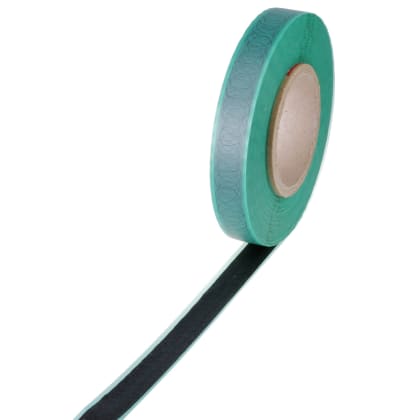

TeXtreme® Carbon fibre tape 38 g/m² (IM, UD) 20 mm

TeXtreme® Carbon fibre tape 38 g/m² (IM, UD) 20 mm
Roll / 100 m
from  102,40 €  / 100 m

TeXtreme® Carbon fibre tape 65 g/m² (HM, UD) 20 mm

TeXtreme® Carbon fibre tape 65 g/m² (HM, UD) 20 mm
Roll / 100 m
from  156,13 €  / 100 m
