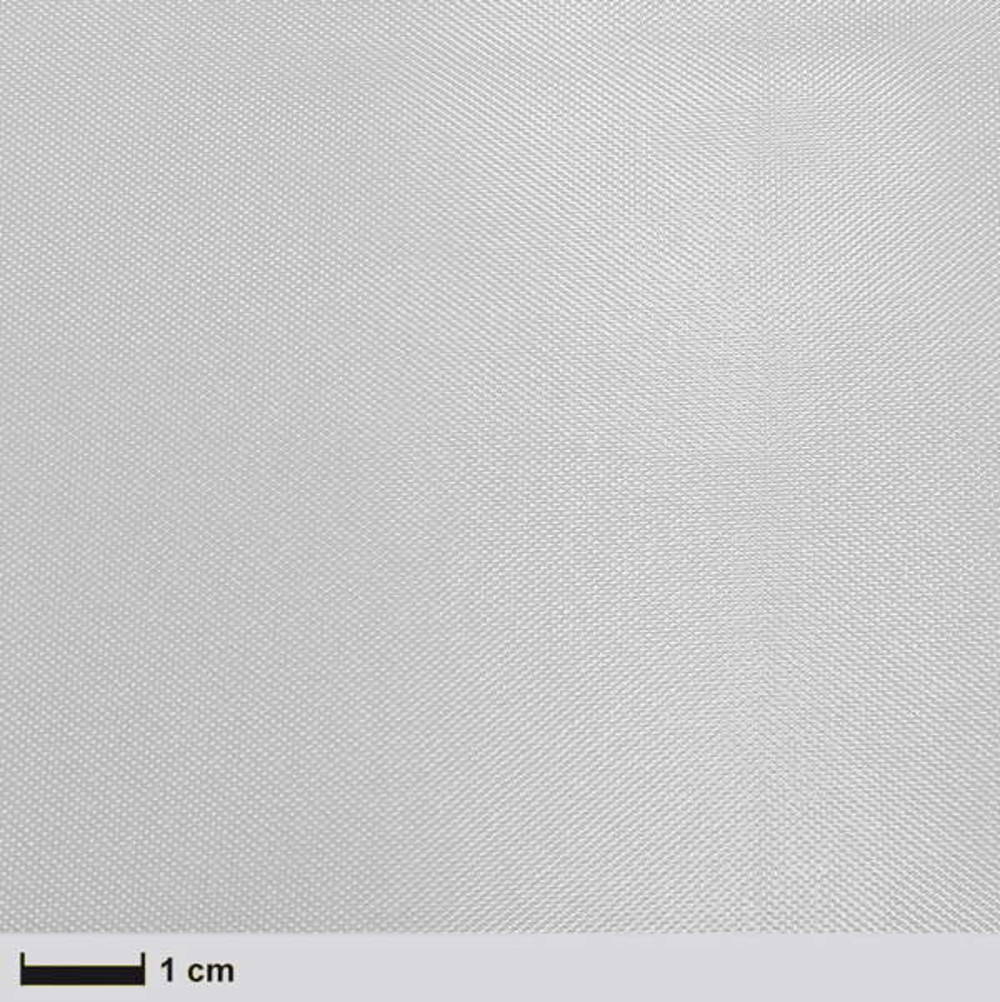

Glass fabric tape 49 g/m² (Interglas 02037, finish FE 800, plain weave) 5 cm
  • Glass fabric tape 49 g/m² (Interglas 02037, finish FE 800, plain weave) 5 cm, image 2
  • Glass fabric tape 49 g/m² (Interglas 02037, finish FE 800, plain weave) 5 cm, image 3
Glass fabric tape 49 g/m² (Interglas 02037, finish FE 800, plain weave) 5 cm

49 g/m² (1.4 oz/yd²)

Kostenloser Laminatrechner Laminate calculator

More Information about packaging kinds of fabric

Related Products

Interglas
more products by Interglas

Glass fabric tape 49 g/m² (Interglas 02037, finish FE 800, plain weave) 5 cm

USA: width 1.97", weight 1.4 oz/yd²

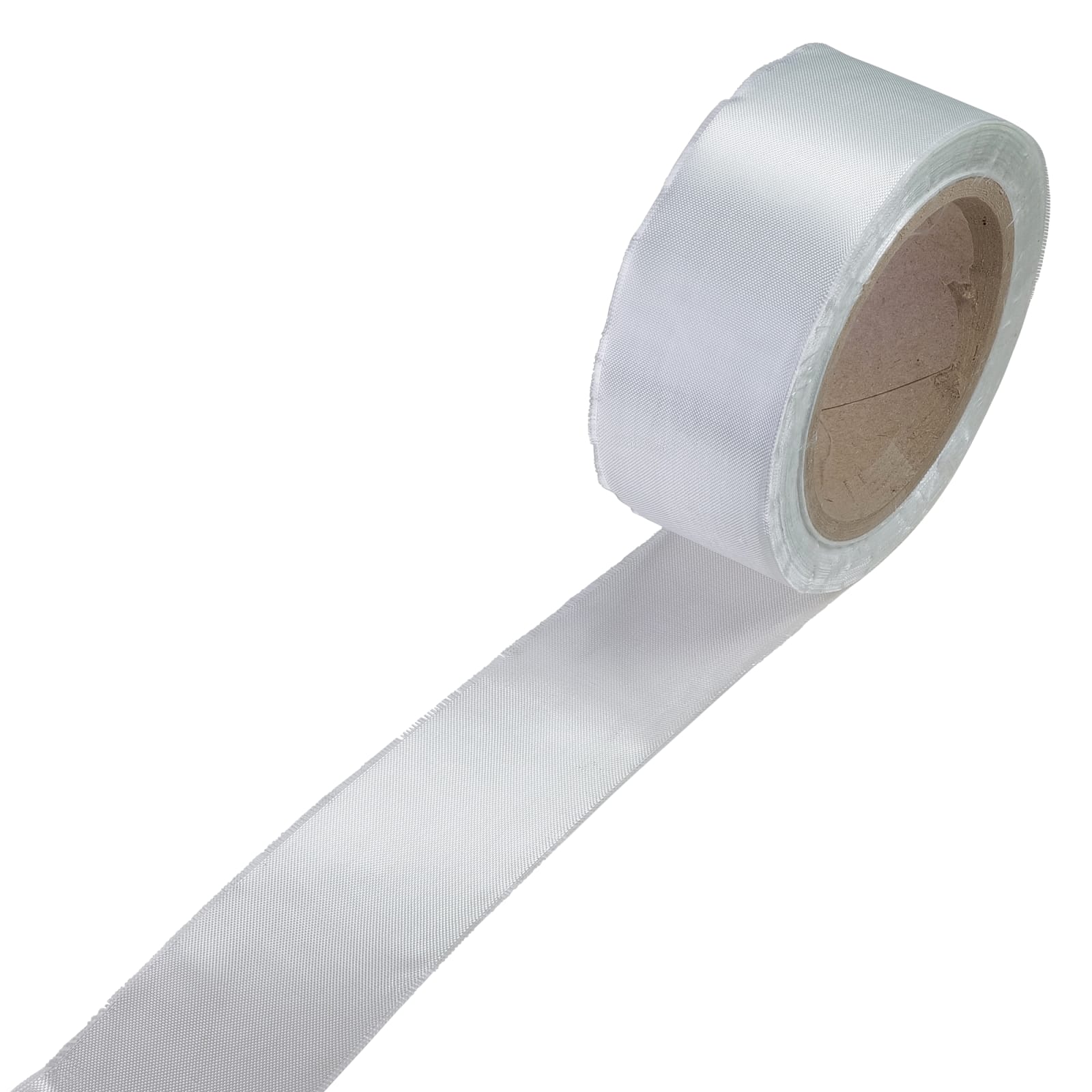

Fabric tape, cut from the original roll. Cut edges, not woven.

Interglas 02037 / Finish FE 800

Plain weave

Yarn (tex):
Warp: EC 5 - 11
Weft: EC 5 - 11

Setting (thr./cm):
Warp: 23.7
Weft: 18.5

Width: 5 cm

Application:
Wood facing/woodgrain foil (wing linings), honeycomb sandwich components, PCBs

Residual tensile strength of glass fabric tapes/glass fabrics made of E-glass after 24 hours of storage at:

Temperature
Residual tensile strength
200 °C 98 %
300 °C 82 %
400 °C 65 %
500 °C 46 %
600 °C 14 %
700 °C -

Calculated data for hand laminates with 35 volume percent fibres:
Resin consumption: 39 g/m², laminate thickness: 0.054 mm, laminate weight: 88 g/m²

Interglas

Glass fabric tape 49 g/m² (FE 800, plain weave) 5 cm, roll/ 100 m

(cut edges)

Item no.  190105-005-8 Only 20 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

45,57 €
(Base Price 9,11 € /  m²)

Scaled Price

  • From Qty 2:  5,00%
  • From Qty 5:  10,00%
  • From Qty 11:  15,00%
  • From Qty 22:  20,00%
- +

all Prices  price incl. VAT, possibly plus shipping

Article information

type: ga
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
Instructions for use
type: si
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
MSDS
MSDS Glass fabric, tapes, braided sleeves, rovings, yarns, chopped strands (PDF)
type: pi
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
Product information
type: td
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
type:
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]

Hazards identification - Glass fabric tape 49 g/m² (Interglas 02037, finish FE 800, plain weave) 5 cm

Classification of the substance or mixture

The product is not classified according to the CLP regulation.
Labelling according to Regulation (EC) No 1272/2008: Void
Hazard pictograms: Void
Hazard statements: Void

Signal word: n/a
