TeXtreme® Carbon fabric 80 g/m² (plain, ± 45 °, HT) 100 cm

TeXtreme® Carbon fabric 80 g/m² (plain, ± 45 °, HT) 100 cm

USA: width 39.37", weight 2.8 oz/yd²

HT-Fibre type: Tenax® UTS50 12k 800 tex

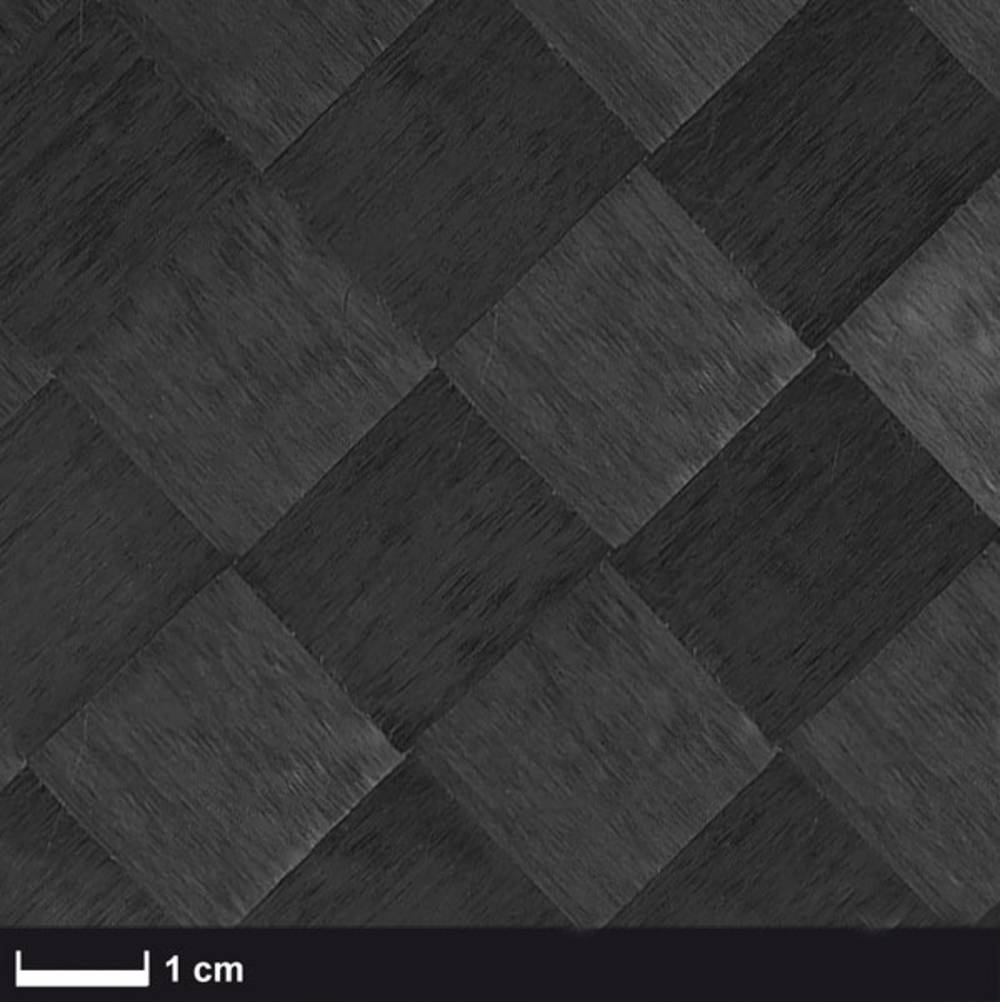

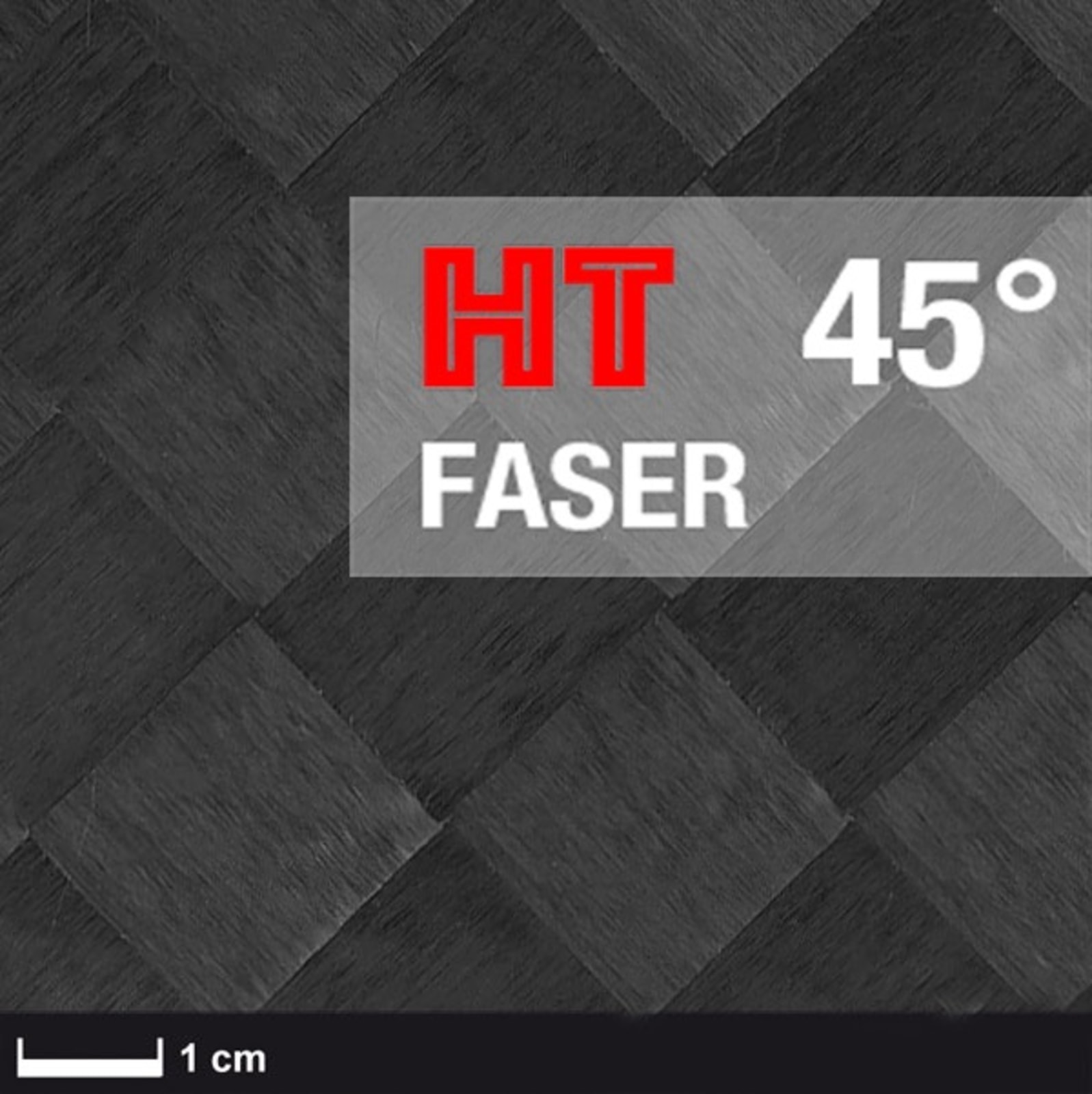

Fibre orientation ± 45 °:
In the TeXtreme® biaxial fabric, the spread tapes are woven at an angle of ± 45 °. The fabric lies very flat and shows only a low ondulation (fiber deflection), which makes better use of the properties of the fibers. Torsion layers can be laminated without waste.

Plain weave
Width:
100 cm
Tape width: 20 mm

Comparison of characteristics of fibres used for TeXtreme® carbon fabric:



TeXtreme®
Carbon fabric HT

TeXtreme®
Carbon fabric IM

TeXtreme®
Carbon fabric HM
Used fibre
Tenax® UTS50 12k
800 tex
Torayca® M30SC 18K
50C 761 tex
Tenax® IMS65 24k
830 tex
Pyrofil™ HR40 12k
600 tex
Tensile strength (MPa): 5100 5490 6000 4410
Tensile modulus(GPa): 245 294 290 395
Elongation at break (%): 2.1 1.9 1.9 1.2
Density (g/cm³) 1.78  1.93 1.78  1.82

The specified fabric weight increases by the binder to about 10 g/m³.

Calculated data for hand laminates with 35 volume percent fibres:
Resin consumption: 96 g/m², laminate thickness: 0.13 mm, laminate weight: 176 g/m²


TeXtreme® - Lightweight Carbon Fabric

TeXtreme® Spread Tow Fabric (STF) increases the performance and reduces the weight of your composites as well as enhancing the surface finish making the composites aesthetically appealing. The material is pliable and easy to handle when forming and cutting. TeXtreme® is available in a variety of areal weight and fibre type configurations.

Key benefits of TeXtreme®:

• Reduced weight by 20 % or more
• Increased mechanical performance
• Superior surface finish
• Unique aesthetic look
• Easy to handle and cut due to a stable structure


Notes:

UV resistance: No sensitivity
EP-Binder: 18 °C softening takes place (improved processing at room temperature)

Storage:
The fabric should be stored in a dry and well-ventilated place at room temperature (0 - 30 °C).
The fabric roll should be stored without load, i.e. the roll must be stored in a stand or in a suitable box so that the paper core can absorb the entire load. R&G guarantees a shelf life of two (2) years from the date of delivery to our customers, provided that the product has been transported, processed, and stored in accordance with the specified requirements.

Delivery:
Textreme® fabrics are generally supplied with a liner film. This prevents the fabric layers from "sticking" together. The high quality of the fabric remains.

Please note:
The manufacturer (OXEON) informed us on request that great progress has been made in quality in recent years, but due to the extremely complicated manufacturing process, unfortunately, no consistently first-class quality can be delivered.
The fibre tapes are not absolutely clean and evenly spread, but this is not a disadvantage for purely technical applications. Unfortunately, this fabric is not or only partially suitable for optical applications. Occasionally weaving errors may occur. These are interrupted fibre tapes which were then joined together by the manufacturer using adhesive tape.
Unfortunately, we cannot select the quality and/or cut out such faulty areas. The manufacturer expressly points out that such irregularities do not constitute errors and are not grounds for complaint.

The fabric in ± 45 ° is a novelty and very complicated to manufacture. In the edge area an approx. 5 cm wide strip is irregularly woven. The actual useful width of the fabric lies within a tolerance range of 90-95 cm.

Further information:

TeXtreme on Facebook
Error classification of the manufacturer Oxeon

Textreme

TeXtreme® Carbon fabric 80 g/m² (± 45°, plain weave, HT) 100 cm, roll/ 0.5 m

(surface area = 0.5 m²)

Item no.  190263-45-20-100-05 Only 5 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

62,44
(Base Price 124,88 € /  m²)
- +
Textreme

TeXtreme® Carbon fabric 80 g/m² (± 45°, plain weave, HT) 100 cm, roll/ 1 m

(surface area = 1 m²)

Item no.  190263-45-20-100-1 Only 2 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

117,05
(Base Price 117,05 € /  m²)
- +
Textreme

TeXtreme® Carbon fabric 80 g/m² (± 45°, plain weave, HT) 100 cm, roll/ 2 m

(surface area = 2 m²)

Item no.  190263-45-20-100-2 Only 2 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

216,37
(Base Price 108,19 € /  m²)
- +
Textreme

TeXtreme® Carbon fabric 80 g/m² (± 45°, plain weave, HT) 100 cm, roll/ 3 m

(surface area = 3 m²)

Item no.  190263-45-20-100-3 Short delivery time

Add to Shopping List

311,85
(Base Price 103,95 € /  m²)
- +
Textreme

TeXtreme® Carbon fabric 80 g/m² (± 45°, plain weave, HT) 100 cm, roll/ 5 m

(surface area = 5 m²)

Item no.  190263-45-20-100-5 Only 2 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

501,34
(Base Price 100,27 € /  m²)
- +
Textreme

TeXtreme® Carbon fabric 80 g/m² (± 45°, plain weave, HT) 100 cm, roll/ 10 m

(surface area = 10 m²)

Item no.  190263-45-20-100-6 Short delivery time

Add to Shopping List

953,14
(Base Price 95,31 € /  m²)
- +
Textreme

TeXtreme® Carbon fabric 80 g/m² (± 45°, plain weave, HT) 100 cm, roll/ 20 m

(surface area = 20 m²)

Item no.  190263-45-20-100-7 Short delivery time

Add to Shopping List

1.618,33
(Base Price 80,92 € /  m²)

Scaled Price

  • From Qty 3:  10,00%
- +
Textreme

TeXtreme® Carbon fabric 80 g/m² (± 45°, plain weave, HT) 100 cm, roll/ 50 m

(surface area = 50 m²)

Item no.  190263-45-20-100-8 Short delivery time

Add to Shopping List

3.763,17
(Base Price 75,26 € /  m²)
- +

all Prices  price incl. VAT, possibly plus shipping

Article information

type: ga
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
Instructions for use
type: si
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
MSDS
type: pi
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
Product information
type: td
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
type:
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]

Hazards identification - TeXtreme® Carbon fabric 80 g/m² (plain, ± 45 °, HT) 100 cm

Classification of the substance or mixture

The product is not classified according to the CLP regulation.
Labelling according to Regulation (EC) No 1272/2008: Void
Hazard pictograms: Void
Hazard statements: Void

Signal word: n/a
