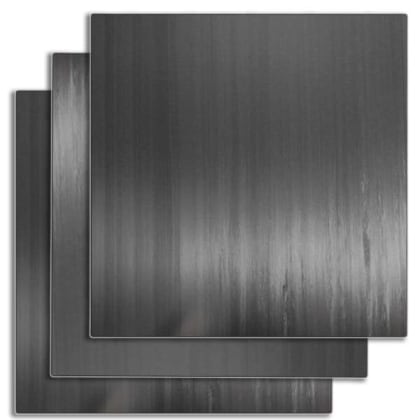

Carbon fibre sheets non-crimp UD 0/90° (350 x 150 mm)

The carbon fibre sheets are high strength and extremely rigid, thus all fibres lay straight and not interwoven.

The continuous operating temperature of the plates goes up to 120 °C.

• Approximately 60% fibre volume fraction
• Unidirectional prepreg, placed at an angle 0 °/90 ° (no fabric)

Size: 350 x 150 mm

Tolerances: Sawn to size length and width ± 1 mm, thickness ±10 %

Application:
The sheets are not ideally suited for decorative purposes but are intended for industrial use where strength and not good visual appeal is important. These CFRP sheets are produced in large quantities and largely automated. This also results in a favourable price.
