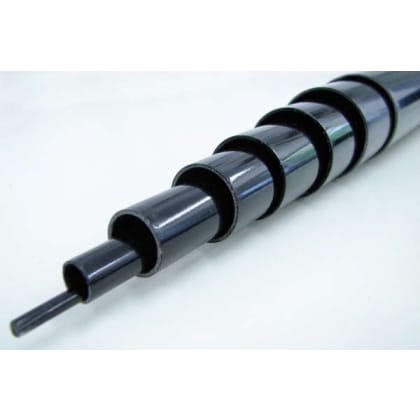

Fibreglass GFRP Telescopic Pole 9.8 m, black

Extendable, lightweight telescopic pole

High-quality GFRP round tubes, with a black surface. High-quality epoxy resin matrix.

The outer mast tube is aluminium reinforced at the bottom end, making it very robust.

Technical data:
Weight: Only approx. 1.34 kg
Length: Telescoped 1.35 m, extracted 9.8 m

The telescopic pole is supplied with a high-quality, screwable end cap of aluminium (at the bottom), so any number of sections can be removed and pulled out. The rubber cap (top) fits very tightly to prevent the cap from unintentionally loosening during transport.

Wall thickness of tubes: approx. 1 - 1.5 mm

Applications:

• Support pole for ham radio aerials
• Recovery pole for models
• Flue gas analysis for firefighting applications
• Mount for probes in hazardous environments (e.g. in nuclear power stations)
• Portable flagpoles for sports clubs
• Camera mount for overhead photography, especially legally admissible photography for forensic evidence
• Removal of dangerous objects by police authorities
• Cable laying in inaccessible environments by installation companies
• animal welfare - for example attaching radio collars on whales

The exact size of the single conical tubes:
Outer diameter of big side x outer diameter of small side x length

No. 1 41.0 x 39.0 x 1330 mm
No. 2 37.3 x 35.3 x 1300 mm
No. 3 33.8 x 30.5 x 1300 mm
No. 4 28.4 x 25.3 x 1300 mm
No. 5 23.2 x 20.8 x 1300 mm
No. 6 18.8 x 14.8 x 1300 mm
No. 7 13.3 x   9.1 x 1300 mm
No. 8   7.8 x   3.3 x 1280 mm

Total length: 9.80 m "extracted, "tube no.. 1 - 8"
Total length: 8.60 m "tube no. 1 - 7"
Total length: 7.39 m "tube no. 1 - 6"
Total length: 6.18 m "tube no. 1 - 5"
Total length: 4.96 m "tube no. 1 - 4"
Total length: 3.74 m "tube no. 1 - 3"
Total length: 2.57 m "tube no. 1 - 2"

Since the individual segments can be removed/removable, the telescopic rod can be adjusted in length to suit your own requirements.

Any recommendations for use are merely examples of what our products can be used for according to experience, but are not binding assurances. It is the responsibility of the user to decide whether the selected product is actually suitable for the intended application. We disclaim any liability for damages resulting from improper use of our products.
