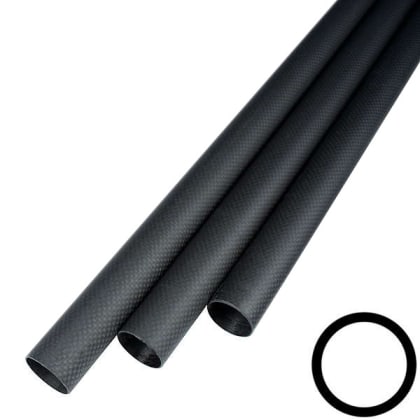

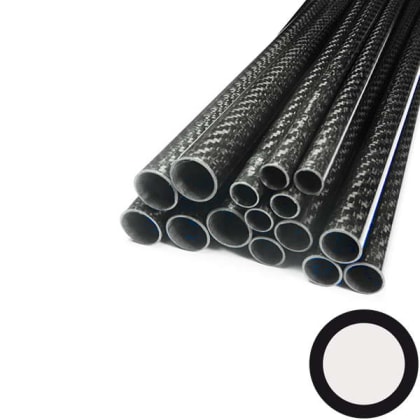

CARBON fibre tubes wound 0°/90°, plain weave (3k)

0°/90°
Various diameters: 6 - 50 mm

FRP Semi finished products (English translator included)

CARBON fibre tubes wound 0°/90°, plain weave (3k)

Wrapped CFRP round tubes with a high-quality, high-gloss surface made of 3k carbon fibre prepreg in plain weave, clear lacquered. Subjacent layers from unidirectional non-crimp fabric. High-quality epoxy resin matrix.

For technical reasons, a very thin, fine glass fabric is incorporated as a carrier material for the carbon fiber during production. This makes it unsuitable for applications such as CT scans.

Fibre orientation:

Surface: 0°/90°
Core: 0°

Characteristics:
Lightweight, excellent corrosion and heat resistance and electrical conductivity. Very good flexural and hoop stiffness.

After laminating, the wound CFK round tubes are ground (round) to size and then coated.

Tolerances:
Diameter: ± 0.1 mm
Straightness: deviation not more than 1 mm/m.

These tubes are usually not telescopic or cannot be telescoped without post-processing.

Carbon round tube, wound, 3k-PW (Ø 6 / 4) x 1000 mm

Weight approx. 25 g

Item no. 7406041 71 in stock (delivery time 1-2 days)

CARBON fibre tubes wound 0°/90°, plain weave (3k)

Carbon round tube, wound, 3k-PW (Ø 6 / 4) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 6 / 5) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 8 / 6) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 8 / 6) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 8 / 7) 1000 mm

Carbon round tube, wound, 3k-PW (Ø 8.8 / 8) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 10 / 8) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 12 / 10) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 12 / 10) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 12 / 8) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 12 / 8) x 1500 mm

Carbon round tube, wound, 3k-PW (Ø 12 / 8) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 12 / 10) x 1500 mm

Carbon round tube, wound, 3k-PW (Ø 12 / 10.5) x 1000 mm

Carbon round tube, wound, 3k-PW, (Ø 12 / 11) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 13 / 11) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 14 / 10) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 14 / 10) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 14 / 12) x 1500 mm

Carbon round tube, wound, 3k-PW (Ø 14 / 12) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 14 / 12) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 15 / 13) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 15 / 10) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 16 / 12) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 16 / 12) x 1500 mm

Carbon round tube, wound, 3k-PW (Ø 16 / 12) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 16 / 14) x 1500 mm

Carbon round tube, wound, 3k-PW (Ø 16 / 14) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 16 / 14) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 18 / 14) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 18 / 16) x 1500 mm

Carbon round tube, wound, 3k-PW (Ø 18 / 16) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 18 / 16) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 19 / 17) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 20 / 14) x 1500 mm

Carbon round tube, wound, 3k-PW (Ø 20 / 16) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 20 / 16) x 1500 mm

Carbon round tube, wound, 3k-PW (Ø 20 / 16) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 20 / 18) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 20 / 18) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 22 / 18) x 1500 mm

Carbon round tube, wound, 3k-PW (Ø 22 / 18) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 22 / 20) x 1500 mm

Carbon round tube, wound, 3k-PW (Ø 22 / 20) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 22 / 20) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 22 / 21) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 24 / 20) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 24 / 20) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 24 / 22) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 24 / 22) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 25 / 20) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 25 / 22) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 25 / 22.5) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 25 / 22.5) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 25 / 24) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 25 / 24) x 1500 mm

Carbon round tube, wound, 3k-PW (Ø 25 / 23) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 25 / 23) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 26 / 22) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 26 / 24) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 26 / 24) x 1500 mm

Carbon round tube, wound, 3k-PW (Ø 26 / 24) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 28 / 25) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 28 / 26) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 28 / 26) x 1500 mm

Carbon round tube, wound, 3k-PW (Ø 28 / 26) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 30 / 26) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 30 / 26) x 1500 mm

Carbon round tube, wound, 3k-PW (Ø 30 / 26) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 30 / 27) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 30 / 28) x 1500 mm

Carbon round tube, wound, 3k-PW (Ø 30 / 28) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 30 / 28) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 31 / 28) x 1500 mm

Carbon round tube, wound, 3k-PW (Ø 32 / 28) x 1500 mm

Carbon round tube, wound, 3k-PW (Ø 32 / 28) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 32 / 28) x 2000 mm

Carbon round tube, wound, 3k-PW (Ø 34 / 30) x 1000 mm

Carbon round tube, wound, 3k-PW (Ø 38 / 34) x 2000 mm
