Epoxy Resin L

General information about the system Epoxy Resin L with different hardeners

  • Low viscosity (700 ± 70 mPa•s at 25 °C)
  • Free of solvents and fillers
  • Fast impregnation of glass, aramid, and carbon fibres
  • High static and dynamic strength

Epoxy Resin L with the corresponding hardeners is the most commonly used laminating and adhesive resin in the R&G delivery programme.

In conjunction with the Hardeners S (15 minutes), L (40 minutes), CL (60 minutes), LT (90 minutes), W 300 (300 minutes), GL 1 (30 minutes) and GL 2 (210 minutes), this epoxy resin exhibits similar mechanical properties to those of the laminating systems usual aerospace .Its heat deflection temperature reaches from 60 °C (S, L, W 300), to 80 °C (GL 1 and GL 2, after post-curing), to 95 °C (CL, after post-curing) and finally to 120 °C (LT, after post-curing).

Epoxy Resin L has a low viscosity, is free of solvents and fillers, and ideal for impregnating glass, aramid, and carbon fibres. Its low surface tension, good adhesion, and minimal curing shrinkage makes it ideal for bonding wood, metal, foamed polystyrene, etc. It can be processed in all of the customary methods, e.g. hand lay-up operations, pressure and vacuum impregnation, press moulding, winding, etc.

  • The well-proven R&G Epoxy Resin L in combination with Hardeners GL 1 and GL 2 offer an approval by the Germanische Lloyd for the construction of boats and rotor blades for wind turbines.
  • CYTOX Expertise for the resin systems Epoxy Resin L + Hardener S, Epoxy Resin L + Hardener L and Epoxy Resin L + Hardener CL : these are not cytotoxic (cell damaging), important for applications in medical purposes.

Suitable hardeners for Epoxy Resin L:

Hardener
S

Hardener
L

Hardener
LT

Hardener
W 300

Hardener
GL 1

Hardener
GL 2

Hardener
CL
Processing time (minutes)
 20 40 90 300 30 210 60
Mixing ratio
(parts by weight)
 100 : 40 100 : 40 100 : 25 100 : 35 100 : 30 100 : 30 100 : 30
Mixing ratio
(parts by volume)		 100 : 45 100 : 45 100 : 29 100 : 42 100 : 35 100 : 35 100 : 35

Single packs
 100140X 100145X 112125X 100149X 104095X 104100X 109285-H-X
Set of two components
(with Epoxy Resin L)		 100105X 100113X 100130X - 10409XX-AP 104100X-AP 109285-AP-X
R&G

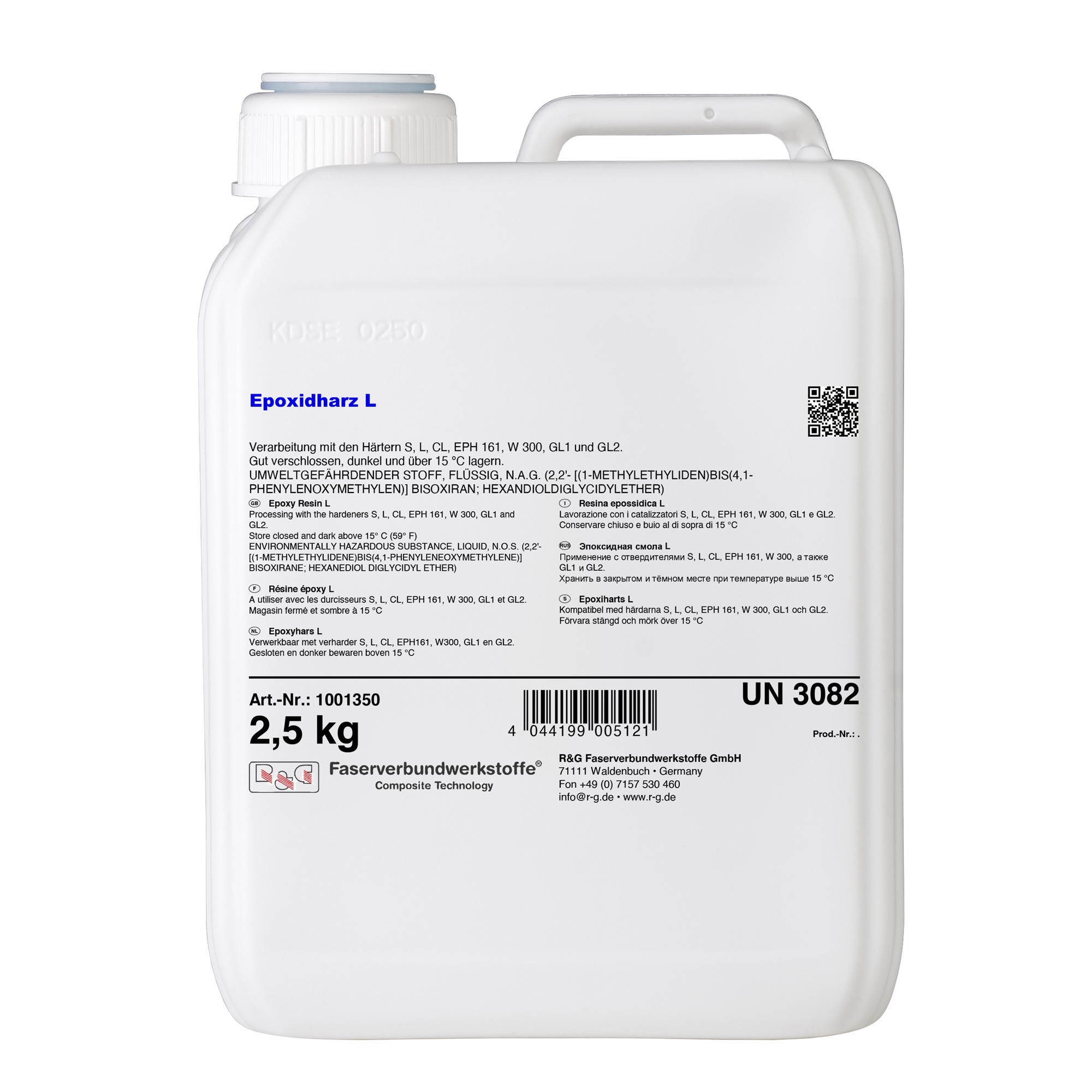

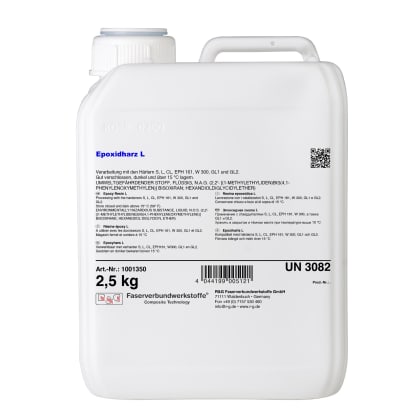

Epoxy Resin L, canister/ 2,5 kg

Item no.  1001350 26 in stock  (delivery time 1-2 days)

Add to Shopping List

41,86 €
(Base Price 16,74 € /  kg)
R&G

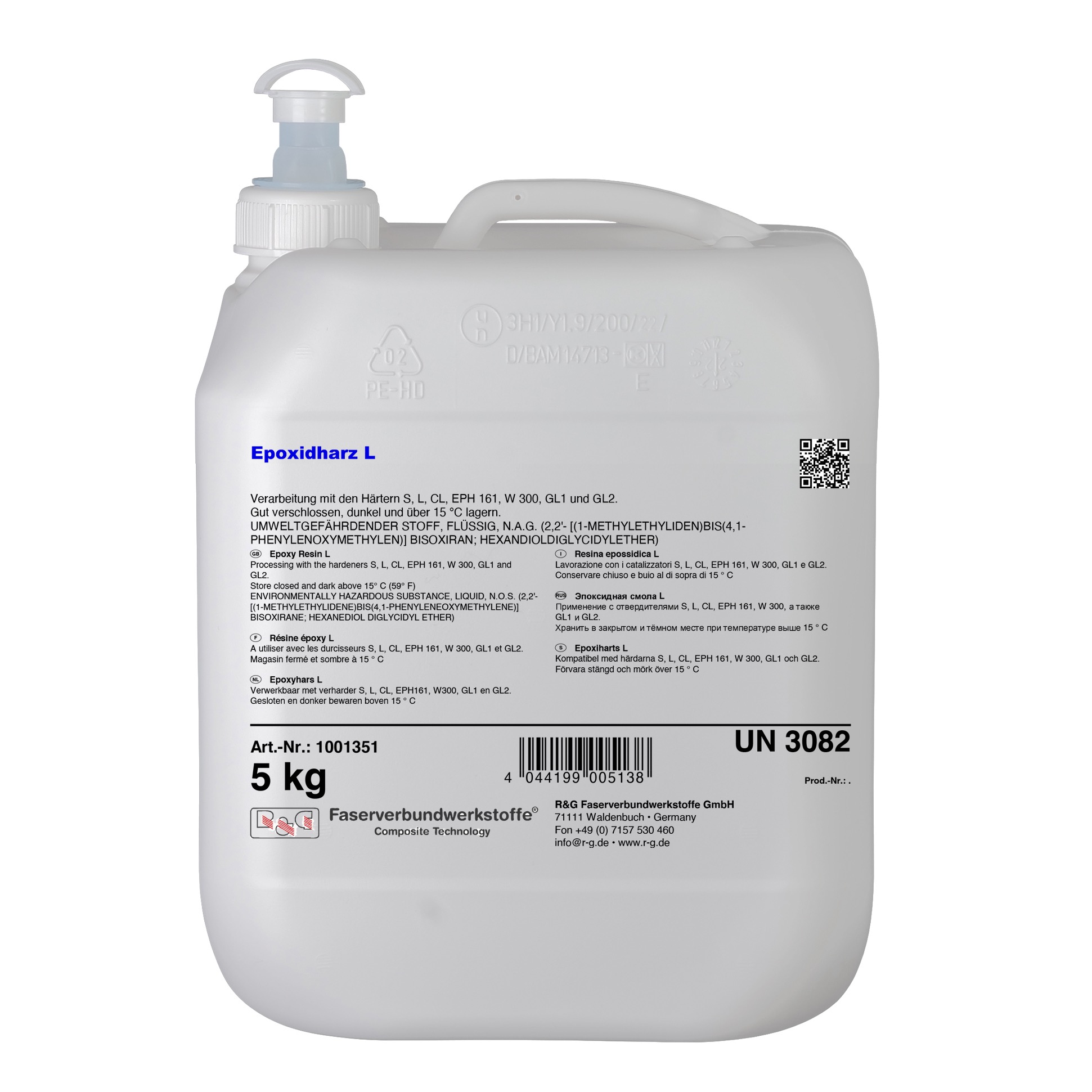

Epoxy Resin L, canister/ 5 kg

Item no.  1001351 76 in stock  (delivery time 1-2 days)

Add to Shopping List

76,85 €
(Base Price 15,37 € /  kg)
R&G

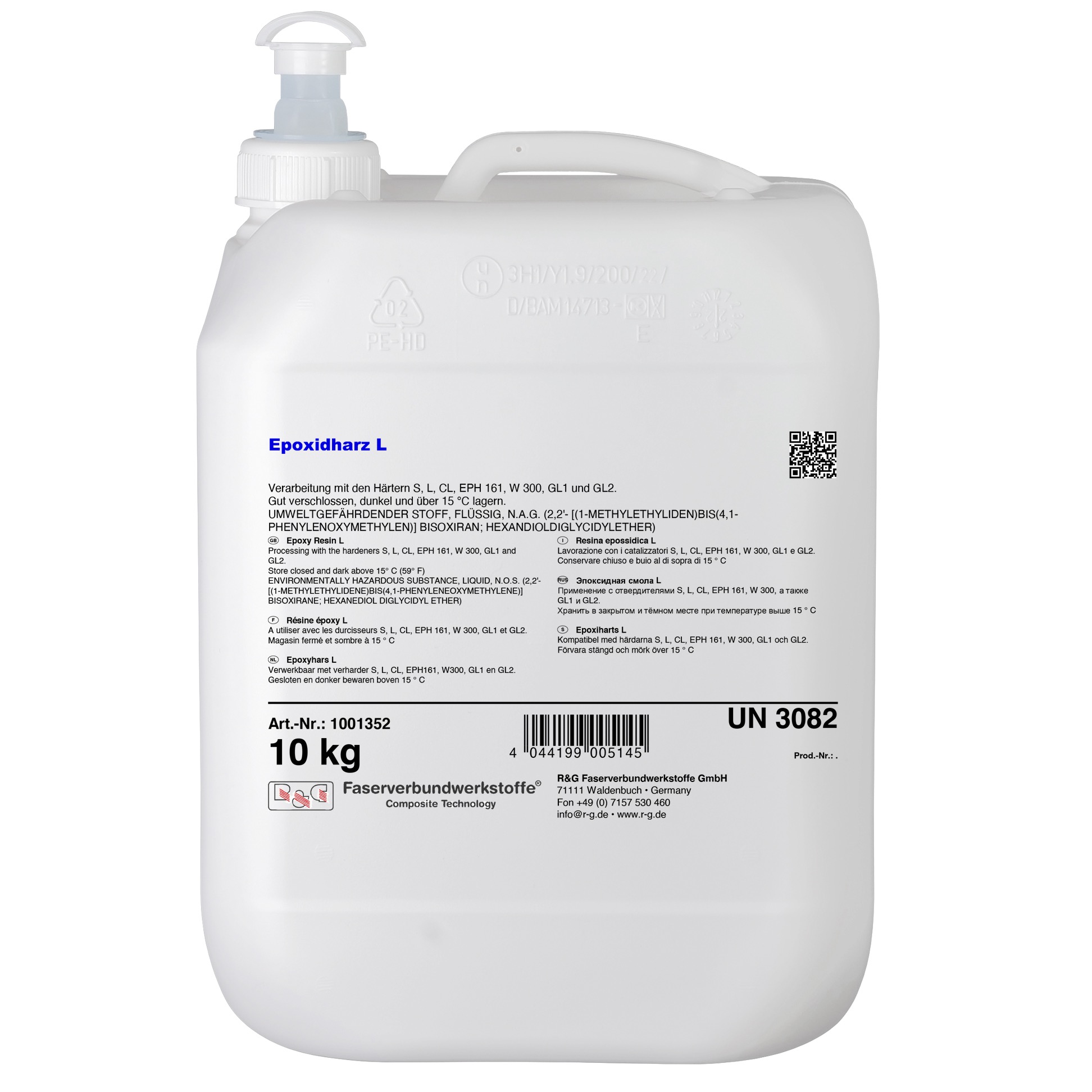

Epoxy Resin L, canister/ 10 kg

Item no.  1001352 42 in stock  (delivery time 1-2 days)

Add to Shopping List

149,83 €
(Base Price 14,98 € /  kg)
R&G

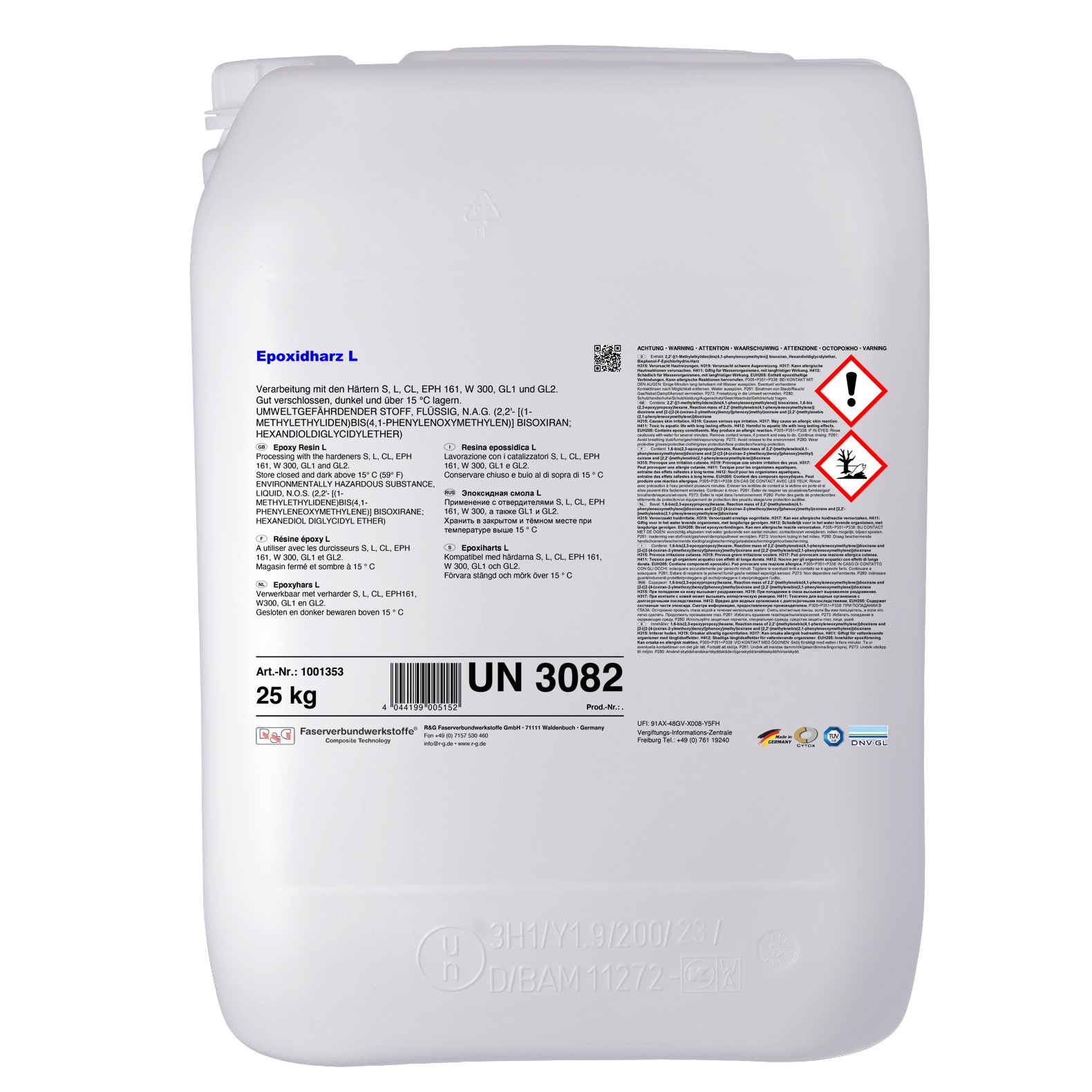

Epoxy Resin L, canister/ 25 kg

Item no.  1001353 Only 13 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

351,82 €
(Base Price 14,07 € /  kg)

Scaled Price

  • From Qty 2:  5,00%
R&G

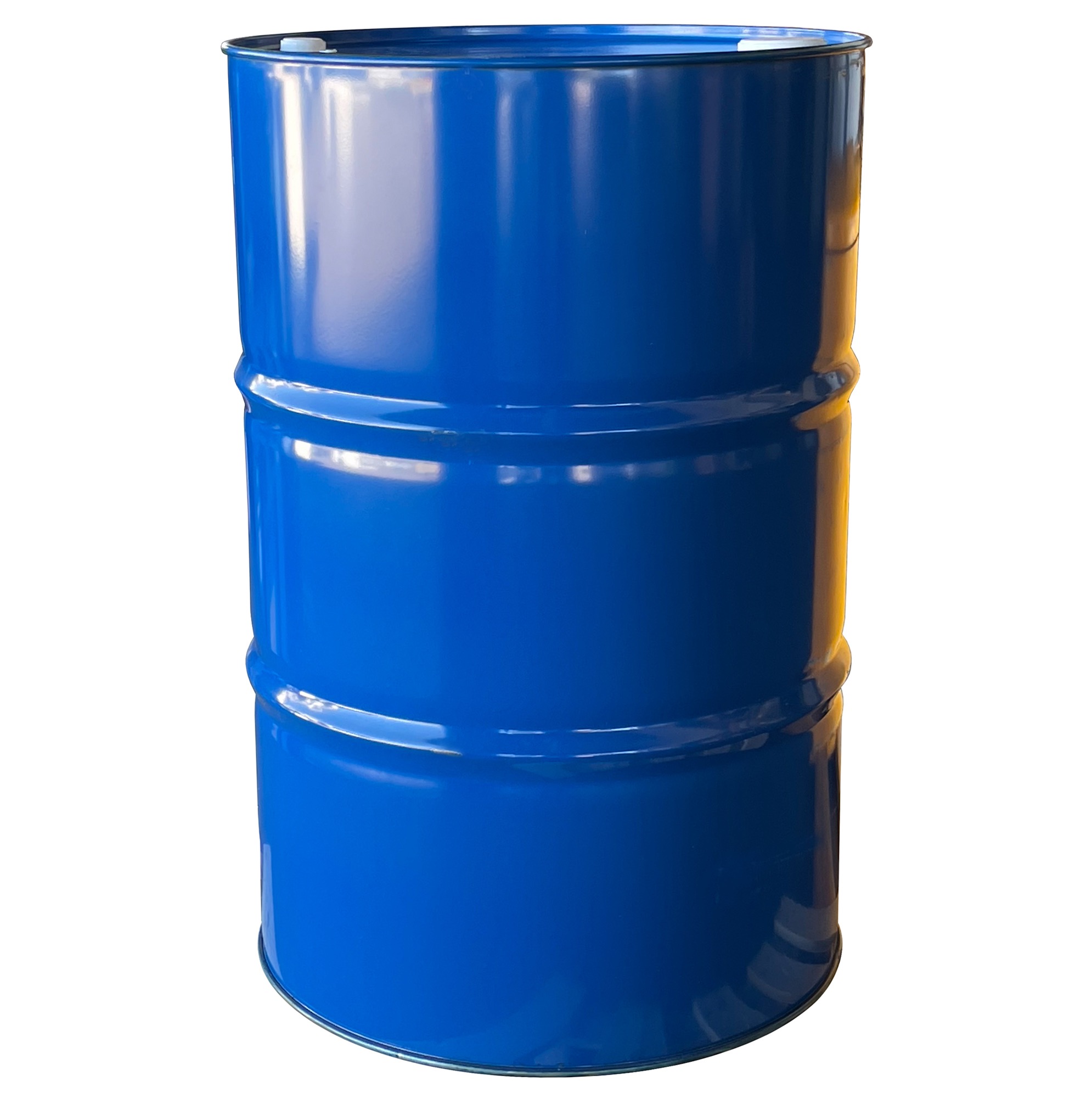

Epoxy Resin L, barrel/ 200 kg

Item no.  1001354 Only 8 left in stock, more on the way  (delivery time 1-2 days)

Add to Shopping List

2.138,83 €
(Base Price 10,69 € /  kg)

Scaled Price

  • From Qty 2:  5,00%

all Prices  price incl. VAT, possibly plus shipping

Article information

type: ga
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
Instructions for use
type: si
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
MSDS
MSDS Epoxy Resin L (PDF)
type: pi
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
Product information
type: td
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]
Processing information Epoxy resin systems (PDF)
CYTOX Test Report with Hardener L (PDF)
CYTOX Test report with Hardener CL (PDF)
Technical data and approval hardener GL 1 and GL 2 (PDF)
Technical Data Sheet Epoxy Resin L and Hardeners (PDF)
type:
language: [language]
info3: [info3]
filetype: [filetype]
url: [url]

Videos

Hazards identification - Epoxy Resin L

Hazard components for labelling

2,2'-[(1-methylethylidene)bis(4,1-phenyleneoxymethylene)] bisoxirane
Reaction mass of 2,2'-[methylenebis(4,1-phenyleneoxymethylene)]dioxirane and [2-({2-[4-(oxiran-2-ylmethoxy)benzyl]phenoxy}methyl)oxirane and [2,2'-[methylenebis(2,1-phenyleneoxymethylene)]dioxirane
Reaction products of hexane-1,6-diol with 2-(chloromethyl) oxirane (1:2)

Signal word: Warning

Pictograms:

GHS07 GHS09

Hazard statements

H315 Causes skin irritation.
H317 May cause an allergic skin reaction.
H319 Causes serious eye irritation.
H411 Toxic to aquatic life with long lasting effects.

Precautionary statements

P261 Avoid breathing dust/fume/gas/mist/vapours/spray.
P273 Avoid release to the environment.
P280 Wear protective gloves / protective clothing / eye protection / face protection.
P305 P351 P338 IF IN EYES: Rinse continuously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing.
P333 P313 If skin irritation or a rash occurs: Get medical advice / attention.
P501 Dispose of waste according to applicable legislation.

Special labelling of certain mixtures

EUH205 Contains epoxy constituents. May produce an allergic reaction.

Accessories

Designer Protection googles Perspecta 9000, clear glasses

A white mannequin head wearing transparent safety glasses with blue temples.

Digital precision scale up to 600 g

A gloved hand holding a blue bottle on a digital scale.

Digital scale up to 20 kg

A hand wearing a glove places a paper cup on a digital scale. The display shows a weight of 180.189 grams. The scale has several buttons.

Digital scale up to 40 kg

A gloved hand holding a paper cup is placing it on a digital scale. The scale's display shows a weight of 240 grams.

Dosing bottle 500 ml

A white dosing bottle with a black cap, labeled 'Dosing bottle 500 ml'.

Dispensing pipette

A transparent plastic pipette with measurement markings, used for transferring small amounts of liquid.

Dosing gun for 50 g cartridges (MR 1:1, 2:1, 10:1)

Caulking gun with multiple interchangeable cartridges labeled 1:1/2:1, 4:1, and 10:1. Parts include handle and nozzle.

Dosing syringe 20 ml

The image shows a clear plastic syringe with volume markings up to 20 ml. It is positioned on a plain white background.

Disposable injector bags

The image shows three packs of Hygonorm standard PE pastry bags. They are transparent and come in different sizes with blue edges.

Tap key

The image shows a black metal rod with a flat, cross-shaped end. It appears to be a tool or a component of a larger mechanism.

Cast metal discharge tap

The image shows a black metal industrial component with a threaded end and a flat, polished surface on one side. It appears to be a part of a mechanical system, possibly a valve or connector. The component is mounted on a black bracket.

Hardener CL (60 min)

A white plastic container with red cap labeled

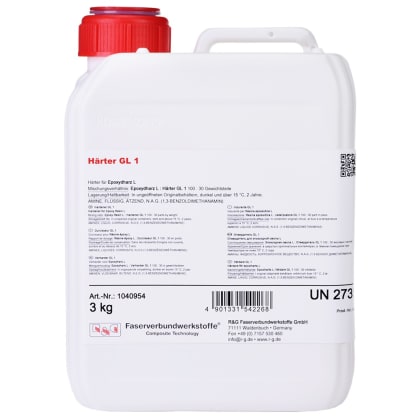

Hardener GL 1 (30 min)

The image shows a white plastic container with a red cap labeled 'Härter GL 1'. It contains hardener for epoxy resin. The label provides mixing instructions and safety information. It is a 3 kg container, type-approved by DNV.

Hardener GL 2 (210 min)

A white container with a red cap labeled 'Härter GL 2'. It contains epoxy resin hardener, with detailed instructions and safety information on the label. The container is 3 kg and is type-approved by DNV. Various languages are used on the label.

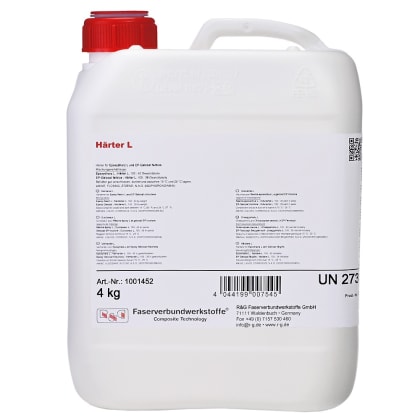

Hardener L (40 min)

A white plastic container with a red cap labeled 'Härter L'. It has detailed product information and a barcode on the label.

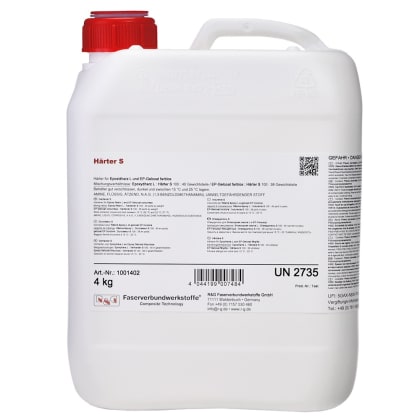

Hardener S (15 min)

A white plastic container with a red cap labeled 'Härter S'. It contains 4 kg of epoxy hardener. The label includes safety information, a barcode, and the UN number 2735. The logo of 'Faserverbundwerkstoffe' is visible at the bottom.

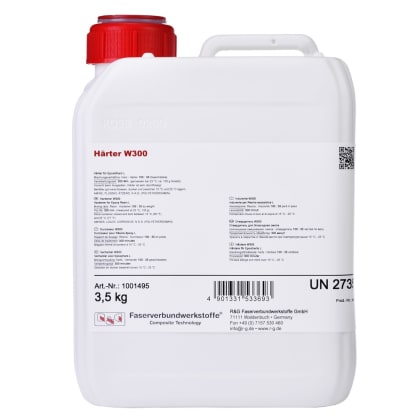

Hardener W 300 (300 min)
