CARBON round tube wound, 3k-TW (Ø 32 x 28) with threaded inserts

CFRP tubes with improved screw inserts (longer and with greater thread pitch).

Wrapped round tube made of 3k twill weave carbon fabric and epoxy resin with a surface in an excellent, glossy finish.

• Good strength and stiffness
• Low weight
• Corrosion-resistant
• Low thermal expansion

Construction:

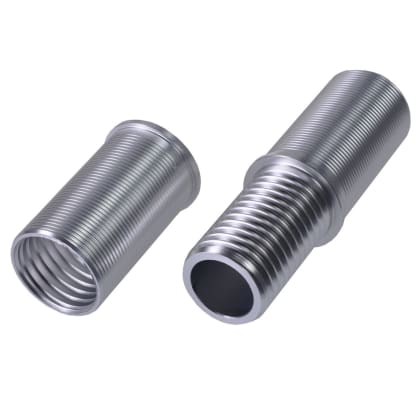

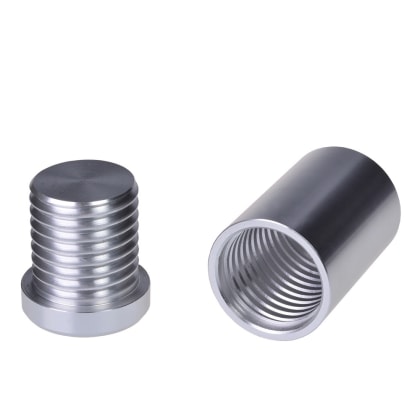

One side with glued-in aluminium internal thread, opposite side with glued-in aluminium external thread. This allows the tubes to be screwed together and extended as required.
Improved bonding of the thread inserts through a 2-component epoxy resin adhesive with high tensile shear strength.

Thread dimensions:

External thread:
M25 x 3
Length: 40 mm
Length of the glued-in section: 50 mm

Internal thread:
M25 x 3
Length: Matching the external thread
Total length of the glued-in insert: 50 mm

Wall thickness: 2 mm

Heat resistance: up to 120 °C

Application:
For transmission of longitudinal forces: Holding rods, link rods, coupling rods, telescopic construction, or for any other rod construction (exhibition construction, displays).
